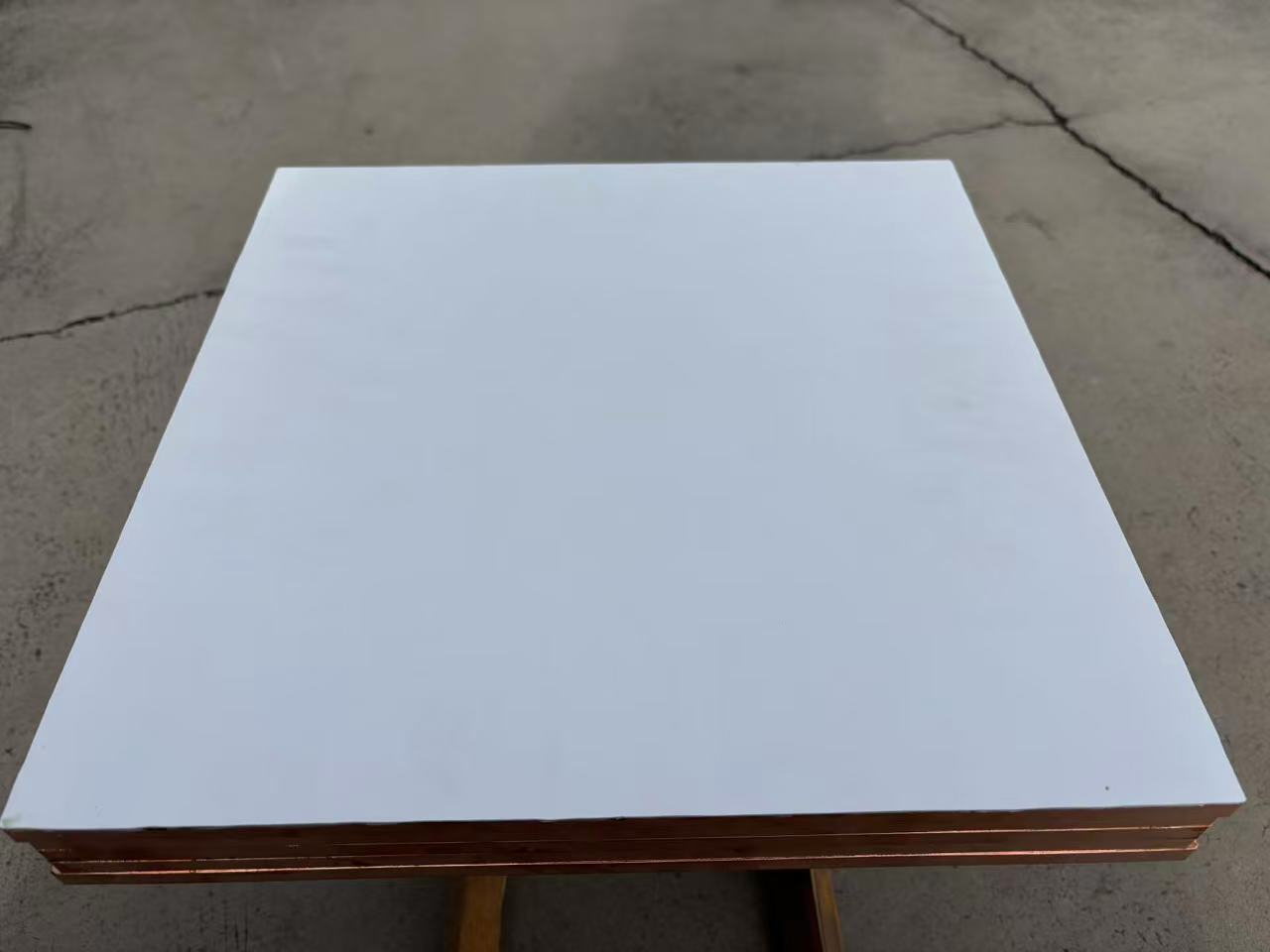

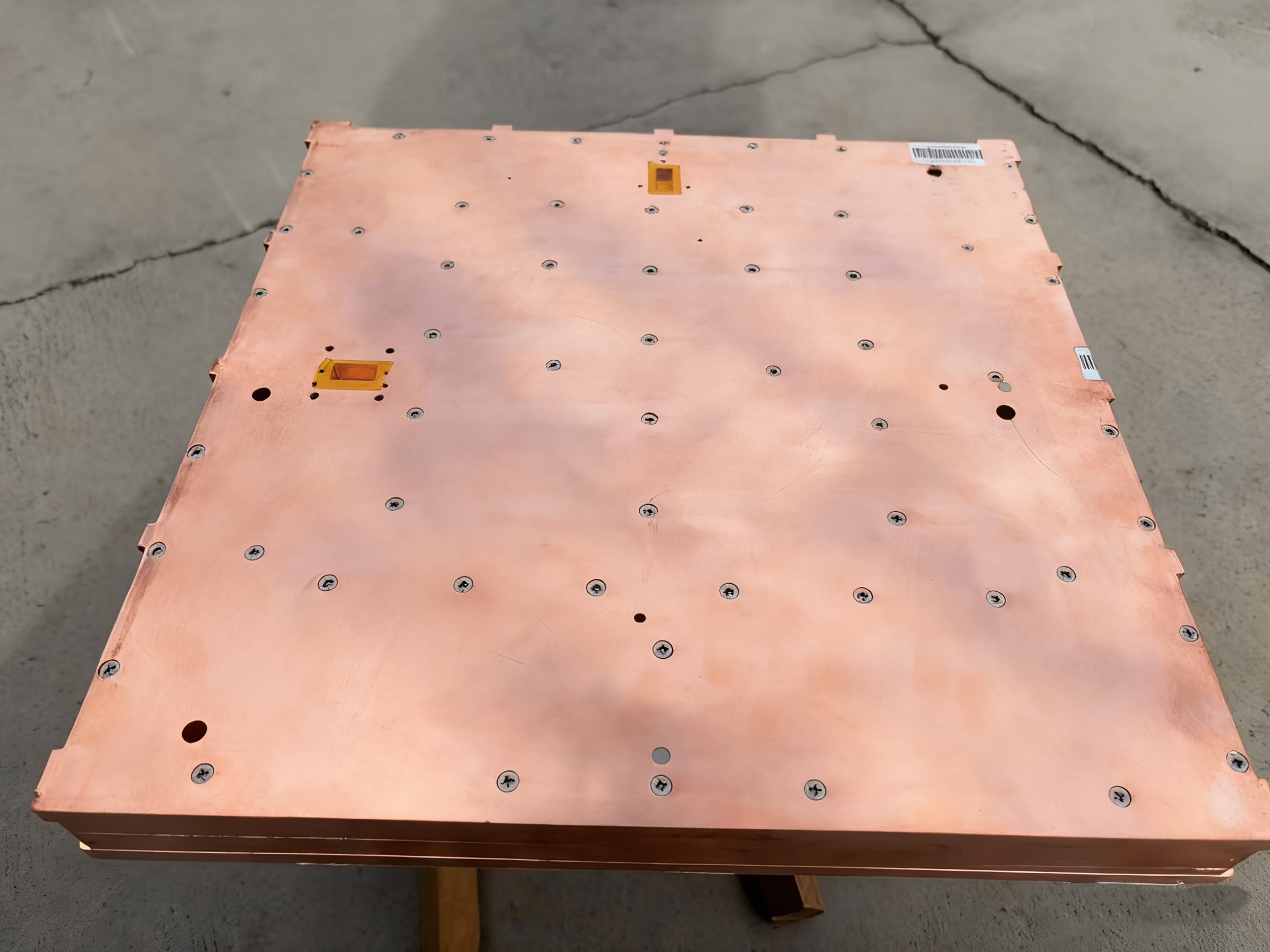

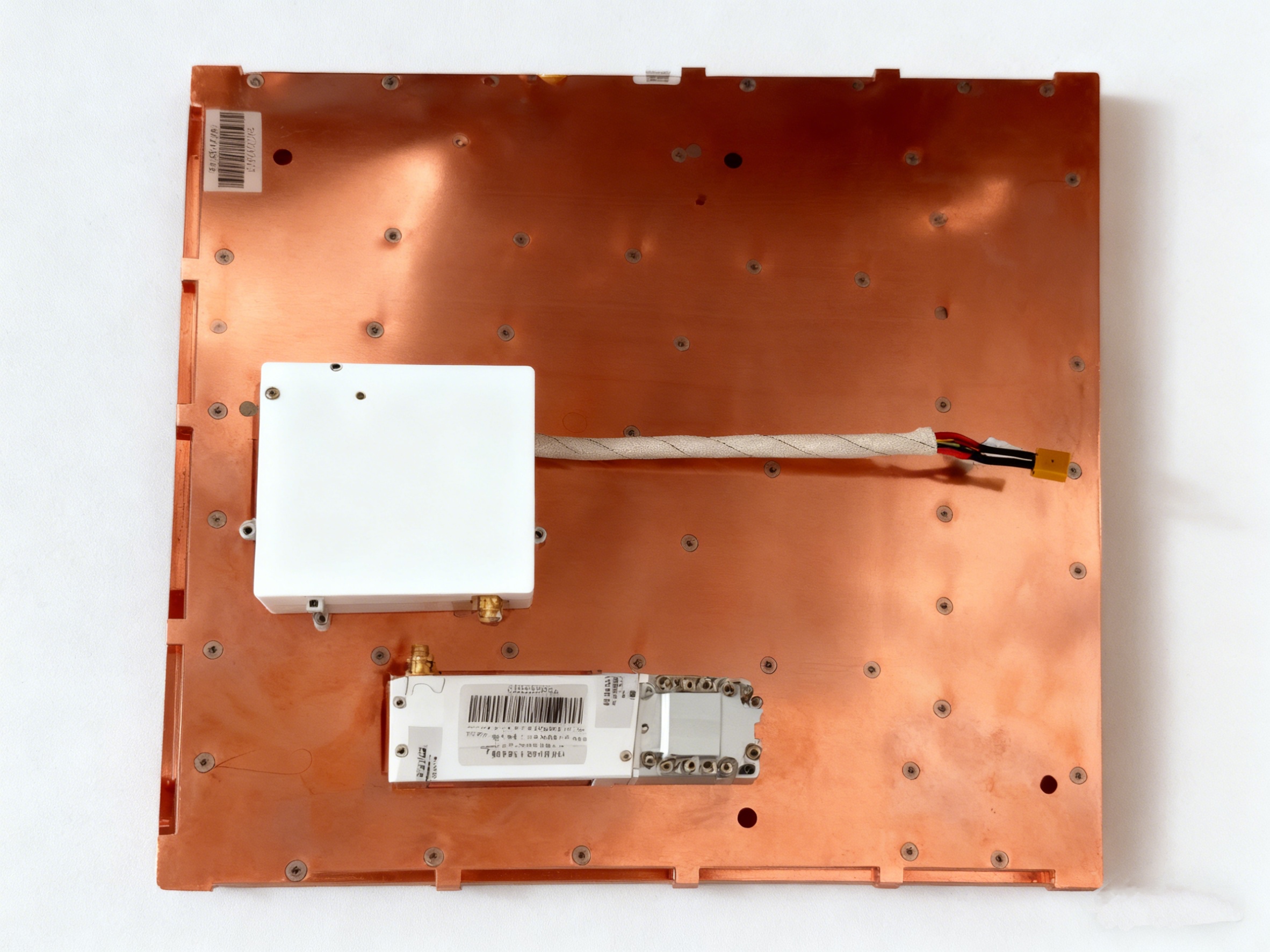

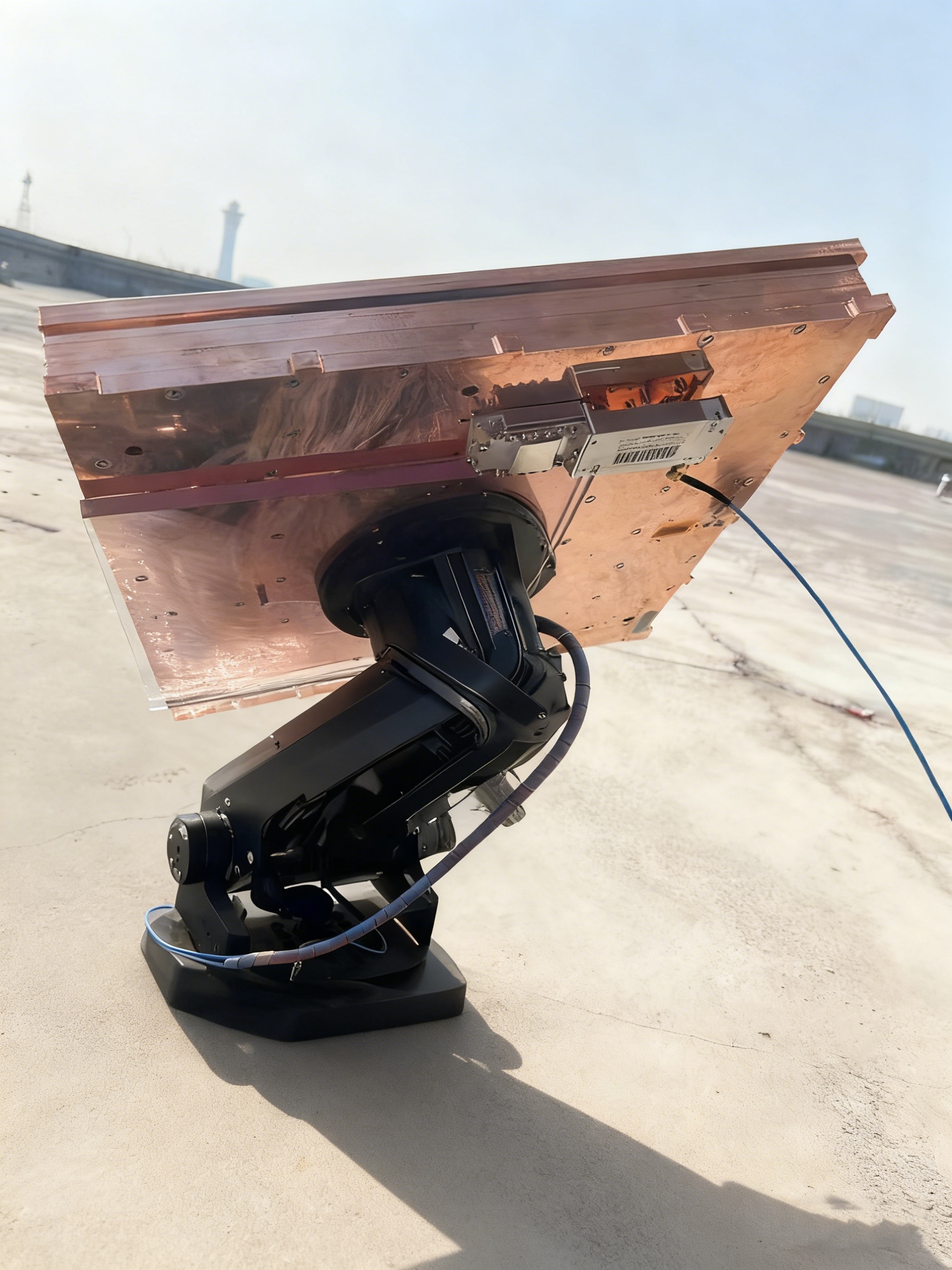

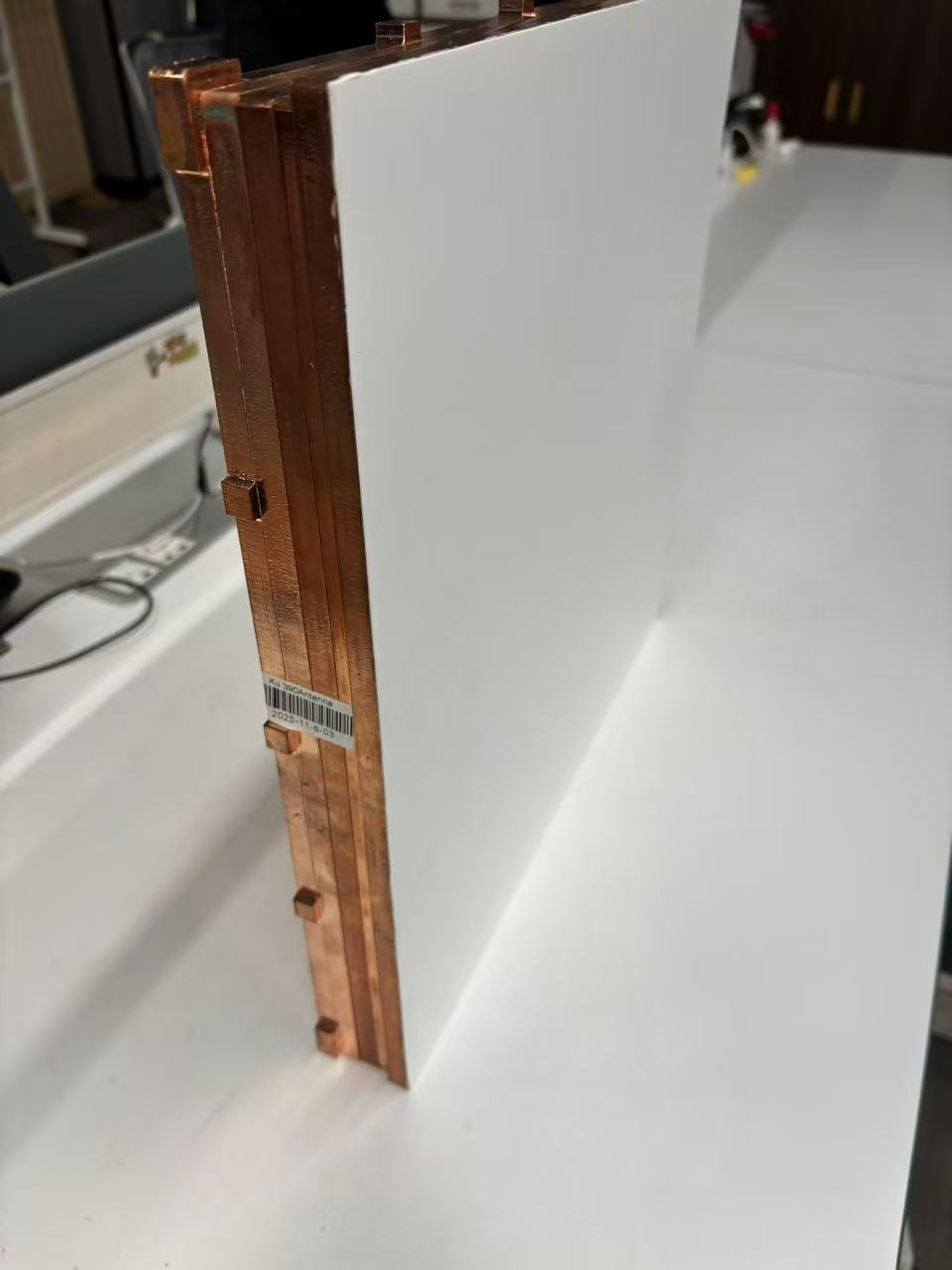

Alzrosat Extended Ku 400: High-Performance 400-Element Waveguide Horn Planar Array Antenna
Engineered for Demanding Satellite Communication with Superior Gain and Stable Performance
Share
Related products
Product Introduction
|
Product Model |
Extended Ku 400 |
|
Antenna Dimension |
390×390×47mm |
|
Antenna Type |
Waveguide Horn Planar Array |
|
Operating Frequency |
Tx: 13.75-14.5GHz, Rx: 10.7-12.75GHz |
|
Antenna Gain |
Tx: ≥33.5dBi@14.25GHz, Rx: ≥33dBi@12.50GHz |
|
Gain Flatness |
±1.0dB |
|
First Sidelobe |
≤-17dB |
|
VSWR |
Tx: ≤1.5, Rx: ≤1.5 |
|
Polarization |
Linear |
|
Polarization Isolation |
≥37dB |
|
Standard PA |
8W |
|
Interface |
BJ120 (WR-75)
|
